Λεπτομέρειες:
|
| Επεξεργασμένη πλαστική: | ΚΑΤΟΙΚΙΔΙΟ ΖΩΟ | Διάμετρος βίδας (mm): | 110 χλστ |
|---|---|---|---|
| Παραγωγική ικανότητα: | 225-250kgs/H μπορούν να προσαρμοστούν | Εγγύηση: | 1 χρόνια |
| Αριθμός εξωθημένου ιμάντα: | 3 | Πεδίο εφαρμογής: | Πλινθοποιείο, μέταλλο, χάλυβας, αργίλιο, ζυθοποιείο |
| αλλαγή οθόνης: | διπλός κύλινδρος/ενιαίος κύλινδρος | Εύρος πάχους: | 0,4-1,2 χλστ |
| Εύρος πλάτους: | 9-32mm | Εφαρμόσιμες πρώτες ύλες: | υλικό νιφάδων μπουκαλιών, σπασμένο 100% υλικό |

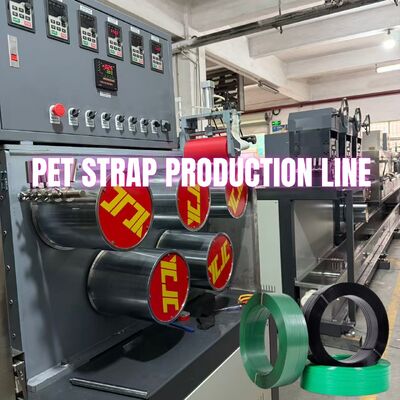

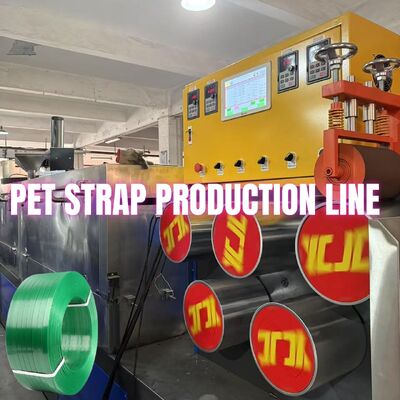

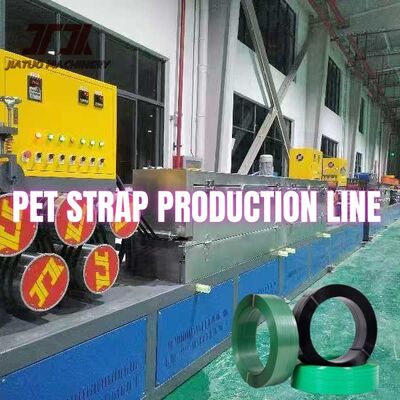

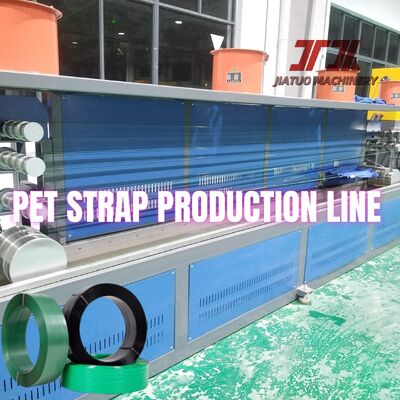

PET Packing Strapping Band Tape Belt Making Production Line With Synthetic Fiber Filter
The process fiow of PET strap making machine as below
Horizontal mixer→Crystallizing and drying system →filter material→Extruder→ Cooling Tank→pre-heating Oven→ first Stretching →second stretching→Embossing machine →shaping oven→ cooling →Haul-off machine →Winder
Parameters of PET strap production machine
| NO. | Item | Specification |
| 1 | Power | According to customer's factory voltage |
| 2 | Material | PET raw material or 100% PET bottle flakes recycled |
| 3 | Capacity | PETJT90:200kg/h |
| PETJT100:250kg/h | ||
| PETJT125:350kg/h | ||
| 4 | Product size | Width:9-32mm |
| Thickness:0.6-12mm | ||
| 5 | Installation power | PETJT90:200KW |
| PETJT100:250KW | ||
| PETJT125:300KW | ||
| 6 | Cooling tower capacity | 30T/H or 50T/H |
| 7 | Installation Dimensions | PETJT90:45*2.0*7.0M |
| PETJT100:45*2.0*7.0M | ||
| PETJT125:60*3.0*8.0M |
Features of JIATUO PET strap making machine
High Strength: PET strapping has extremely high tensile strength, typically reaching 50%–70% of that of steel strapping, allowing it to withstand heavy loads.
Good Flexibility: Compared to steel strapping, PET strapping is softer, less likely to scratch packaged goods, and safer to handle.
Corrosion Resistance: PET material is resistant to acids and alkalis, moisture-proof, and rust-proof, suitable for various environments.
Environmentally Friendly: PET strapping is recyclable, meeting environmental protection requirements.
Lightweight: Lightweight, easy to transport and handle, reducing logistics costs.
Impact Resistance: Possesses good impact resistance, suitable for long-distance transportation.
1. For PP(polypropylene) strapping band extrusion line
* What about the output of PP strapping band extrusion line? 120kg/hr, 260kg/hr, 380kg/hr.
* What about the size of strap that the PP strap machine can make? Width: 5-19mm; Thickness: 0.3-1.2mm;
* What about the installation power of the PP strap machine? 60kw/80kw/90kw/110kw;
2. For PET(polyester) strapping band extrusion line
* What about the output of PET strapping band extrusion line? 110kg/hr, 180kg/hr, 250kg/hr, 330kg/hr.
* What about the size of strap that the PET strap machine can make? Width: 9-32mm; Thickness: 0.4-1.2mm;
* What about the installation power of the PET strap machine? 150kw/200kw/250kw/300kw;
![]()
