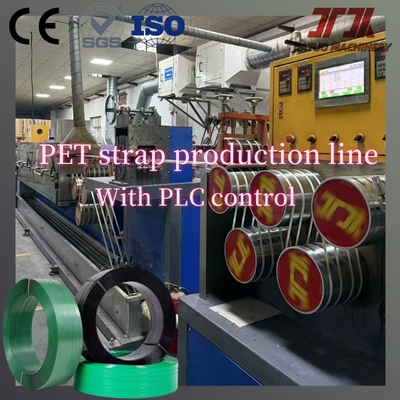

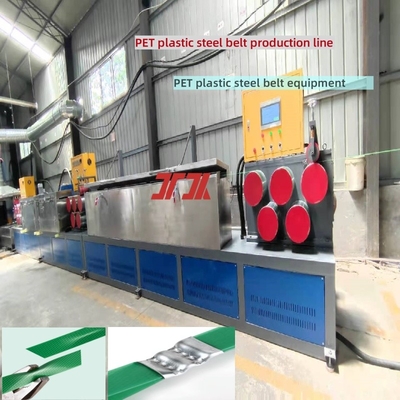

Product Description of PET Plastic Steel Strip Production Line :
PET plastic steel belt production line features:
PET strapping production line equipment fully meets environmental protection requirements. PET plastic steel belt can be produced using 100% waste mineral water, Sprite, Coke and other bottle flakes as raw materials.
PET strapping production line equipment is equipped with PLC computer control system control, which is used for real-time memory control of melt temperature, pressure, extrusion speed, torque, traction, etc. to ensure that the product quality is the same every time.
The equipment is equipped with two sets of shaping oven systems, one stretch shaping, two shaping shaping, etc. The equipment consists of: stirring part, feeding part, drying part, dehumidification part, main machine part, cooling part, extension part, shaping part, small traction part, large traction part, embossing part, winding machine, etc.
Features of PET plastic steel strap:
PET strapping tape, also known as plastic steel strap, is a new type of strapping tape that is currently popular in the world to replace iron straps.
Widely used in: steel, aluminum, chemical fiber, cotton spinning, brick factories, paper industry, metal canning and other industries. Strong tensile strength: It has both the tensile strength of steel straps and the ductility to resist impact, which can ensure the transportation safety of your products.
Low elongation----The elongation is only one-sixth of that of polypropylene (PP) straps, and it can maintain tension for a long time.
Good flexibility----No sharp edges of steel straps, safe operation, neither hurting hands nor damaging the tied objects.
Beautiful----No risk of steel straps rusting and contaminating the tied objects, and the color is bright and clear. Widely recognized by customers in the market.
EXTRUSION PARAMETERS TABLE
| Model |
PET-2 |
PET-3 |
PET-4 |
PET-6 |
PET-8 |
| Raw materials |
100% Bottle flakes/crushed materials |
| Number of tapes |
2 |
3 |
4 |
6 |
8 |
| Width (mm) |
9-32 |
| Thickness (mm) |
0.4-1.2 |
| Maximum line speed(m/min) |
≧150 |
≧150 |
≧150 |
≧150 |
≧150 |
| Screw Model |
90 |
100 |
125 |
150 |
180 |
| Reducer model |
200 |
250 |
280 |
315 |
350 |
| Dehumidifier |
1000 |
1000 |
2000 |
3000 |
3500 |
| Metering Pumps |
100CC |
| Production capacity /24 H |
5-6T |
7-8T |
10-12T |
12-15T |
18-20T |

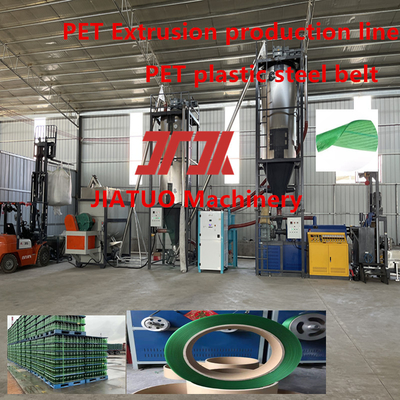

PET plastic steel belt production line extrusion process:
Horizontal feeder ----mix different PET crushed materials or bottle flakes evenly.
Drying barrel ------ heat the PET raw materials to dry the moisture.
Dehumidifier--------remove the moisture in the PET raw materials.
Extrusion molding-------make the molten PET belt blank pass through the mold to form.
Cooling water tank-------cool the extruded PET belt blank to ensure its molding.
Tractor--------tow the cooled PET strapping belt to maintain a stable production speed.
Stretcher--------stretch the formed PET belt instantly, about 1-10 times
Oven--------heat the strapping belt to improve the toughness of the PET belt.
Embossing machine------emboss the surface of the strapping belt to increase friction and prevent slipping.
Forming oven--------heat and shape again to make the PET belt more standardized.
Rewinder---------roll the strapping belt into a roll for easy storage and transportation.
About winding machine:
Strong adaptability---can handle PET tapes of different widths and thicknesses, adapt to a variety of production needs, with or without paper cores.
Energy-saving and environmental protection---adopt energy-saving technology to reduce energy consumption, low power consumption, fast speed, in line with environmental protection requirements.
Safe and reliable---equipped with multiple safety protection devices, automatic power-off protection, to ensure safe operation.
Easy maintenance---PLC modular design, simple maintenance and maintenance, reducing downtime.
Excellent appearance design---compact structure, beautiful appearance, in line with modern factory requirements.
Services :
After-sales service
Our PET plastic steel belt equipment provides comprehensive technical support and services. We have an experienced technical team that can quickly provide a variety of services, including:
Pre-sales:
1. Layout of PET plastic steel belt equipment.
2. Analysis of finished product manufacturing costs of PET plastic steel belt equipment.
3. Analysis of raw materials used in PET plastic steel belt equipment.
After-sales service:
1. Waterway diagram, circuit diagram, pipeline connection drawings, etc. of PET plastic steel belt equipment.
2. Installation, commissioning and training of PET plastic steel belt equipment.
3. Maintenance service of PET plastic steel belt equipment.
4. Regular maintenance and repair
5. Fault diagnosis
6. Software update and upgrade
7. Spare parts and accessories
8. Training and technical consultation
FAQ:
- Q: What is the Brand Name of this PET Strap Making Machine?
A: The Brand Name is JIATUO CHINA.
- Q: What is the Model Number of this PET Strap Making Machine?
A: The Model Number is JTPET.
- Q: Where is this PET Strap Making Machine made?
A: This PET Strap Making Machine is made in CHINA.
- Q: What is the Certification for this PET Strap Making Machine?
A: This PET Strap Making Machine has IS CEO Certification.
- Q: What is the Minimum Order Quantity for this PET Strap Making Machine?
A: The Minimum Order Quantity is 1 SET.
